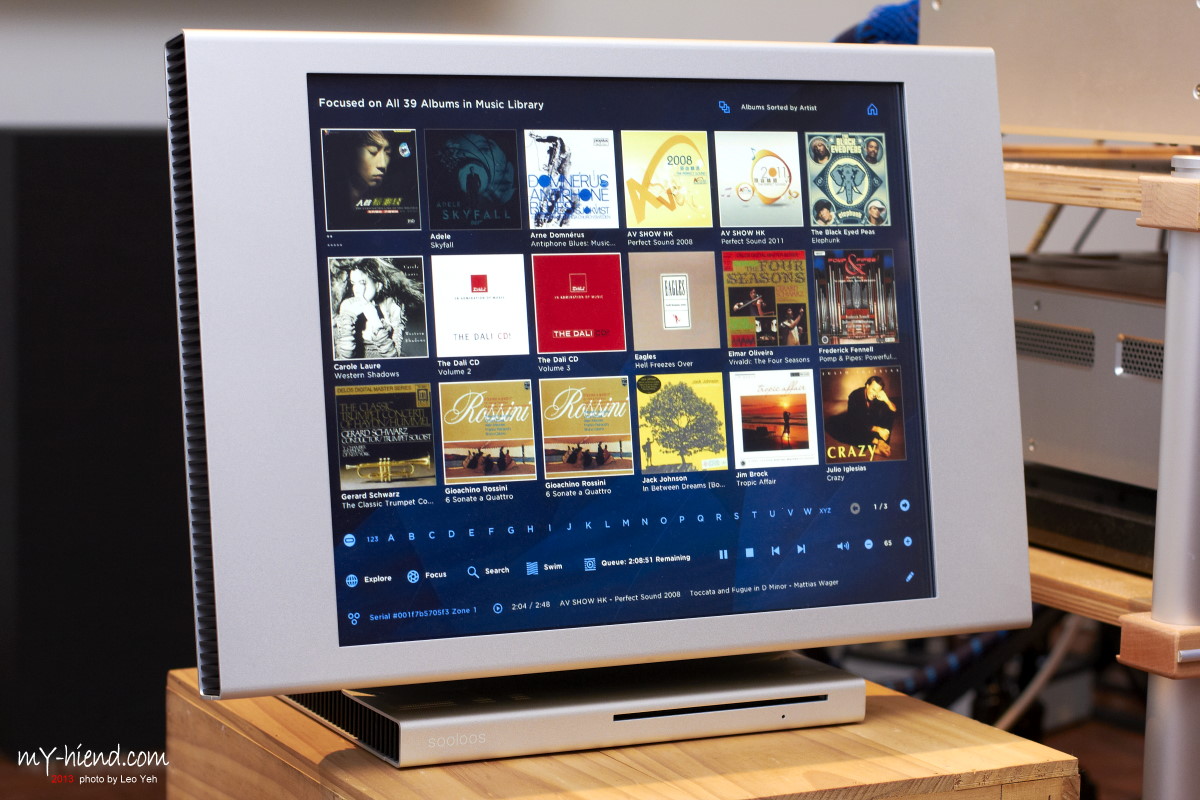

Meridian Control 15 (Sooloos Digital Media System)

同時擁有500GB硬碟、播放與17″觸控螢幕,iPad可下載專用的控制軟體Core Control,若加上Meridian的DSP數位喇叭,就是一套完整的系統了,或是可用同軸數位輸出到系統的DAC進行解碼。

英國製造

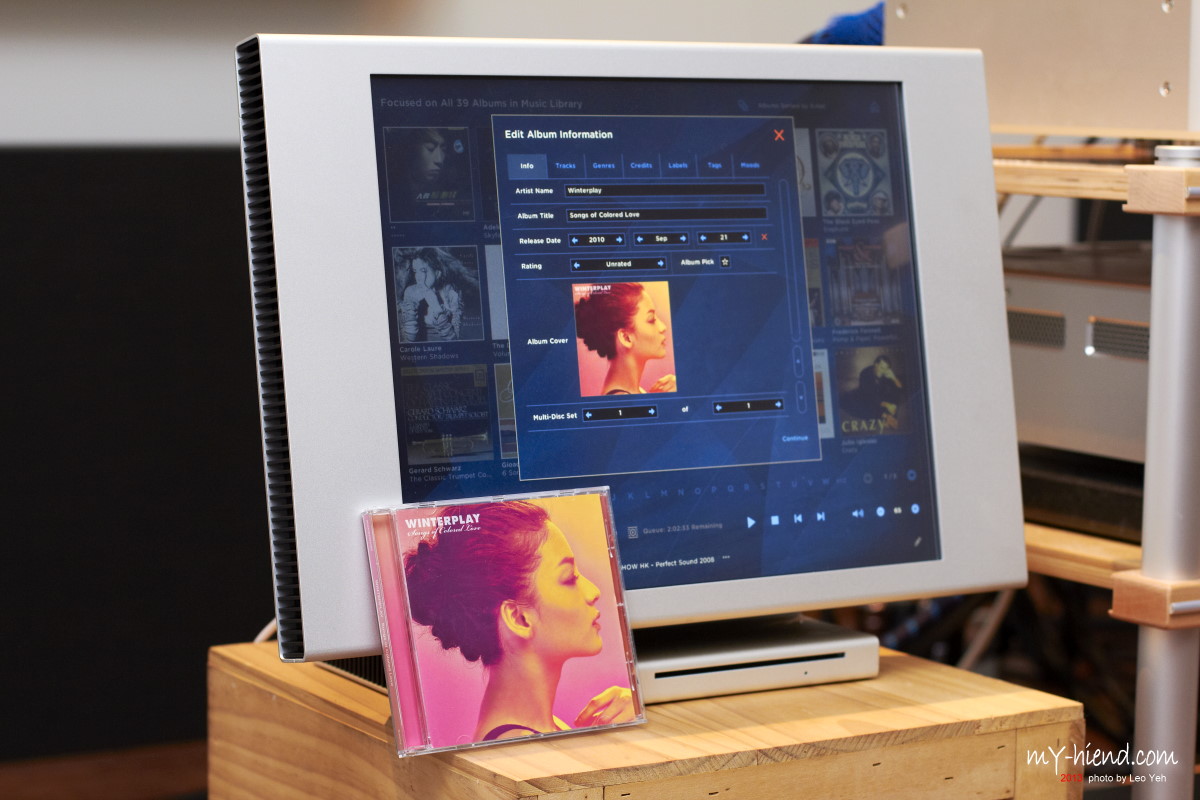

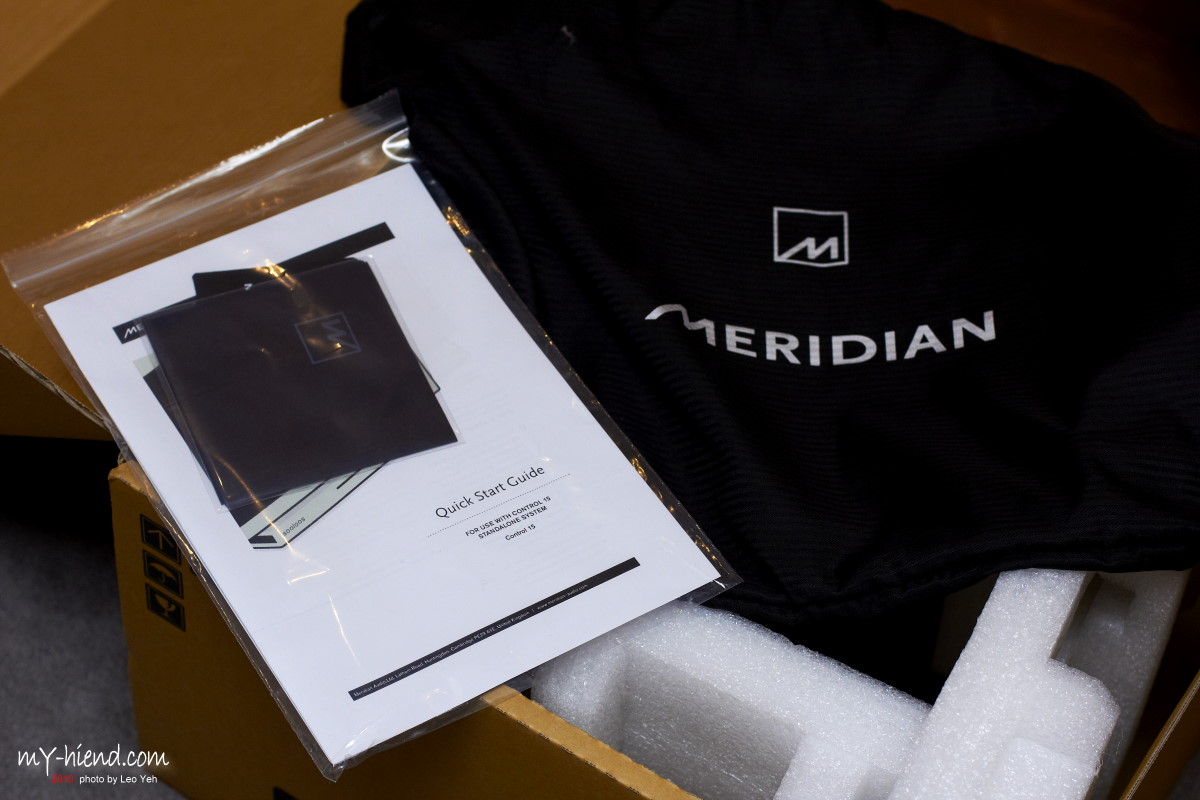

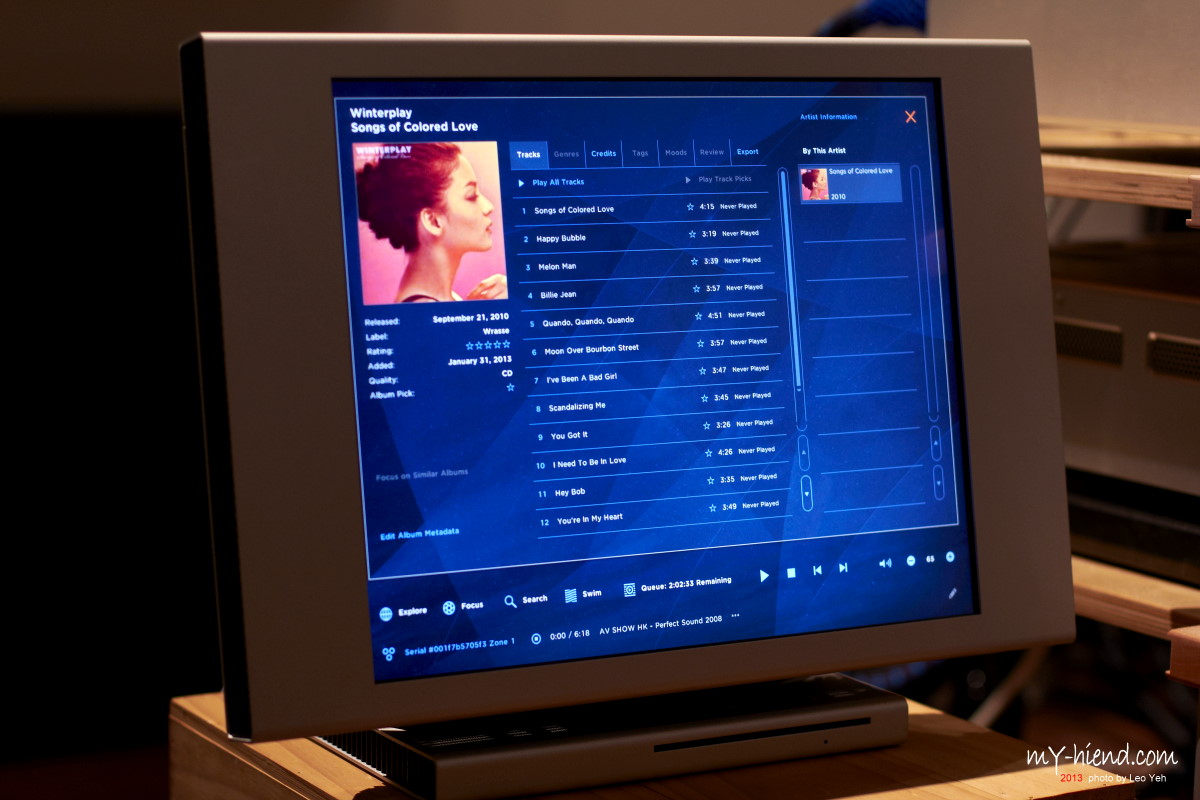

直覺的控制,說明書根本不用看

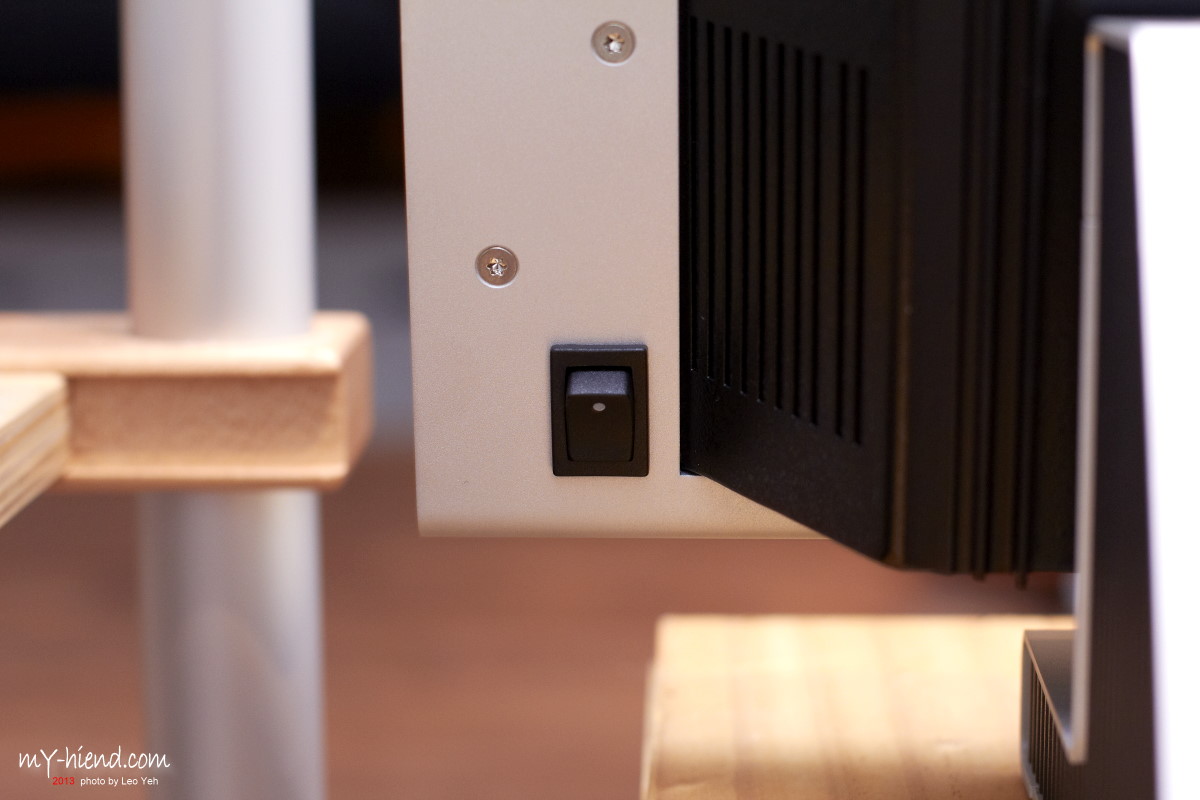

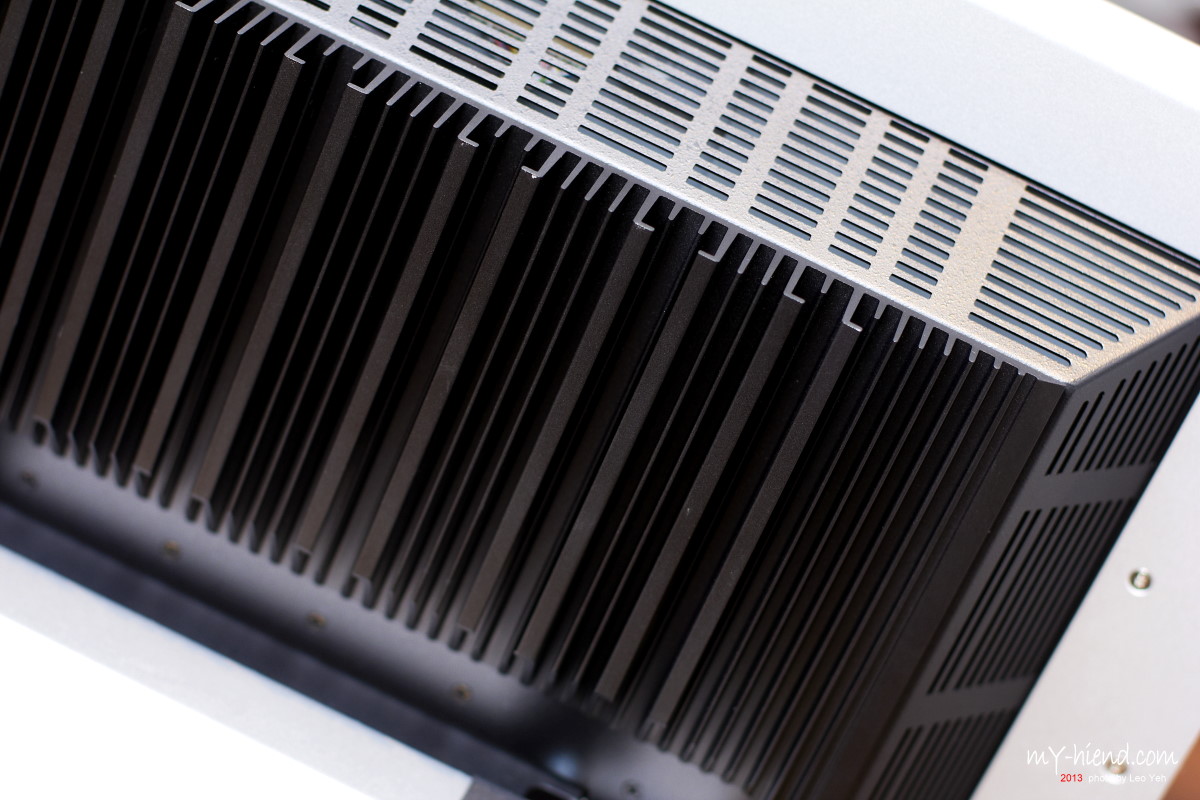

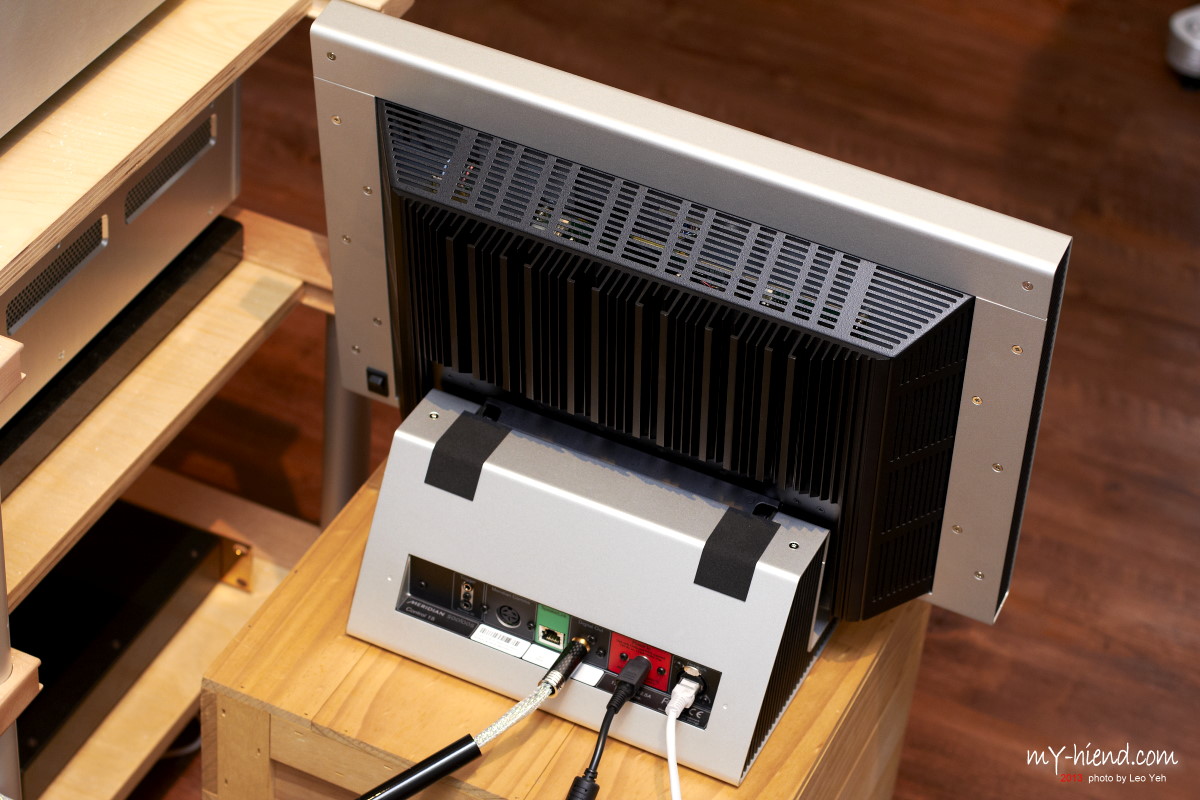

螢幕後面使用了許多散熱片

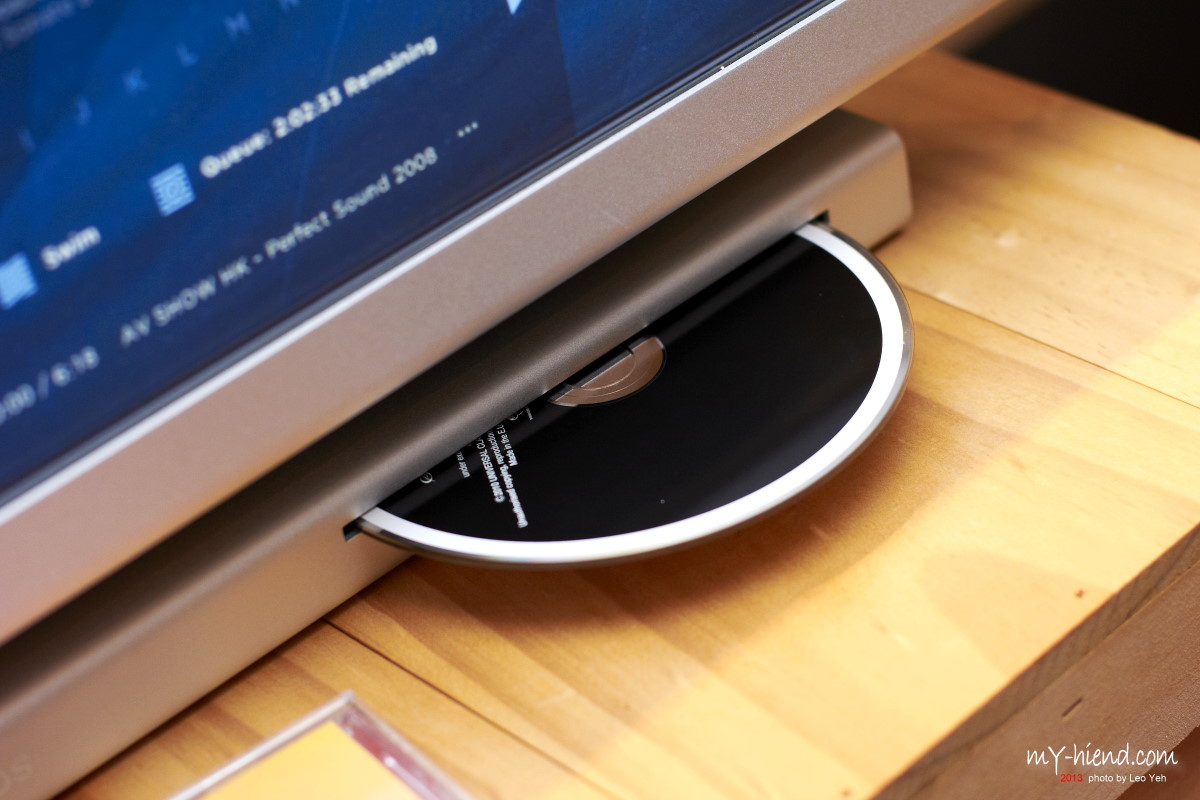

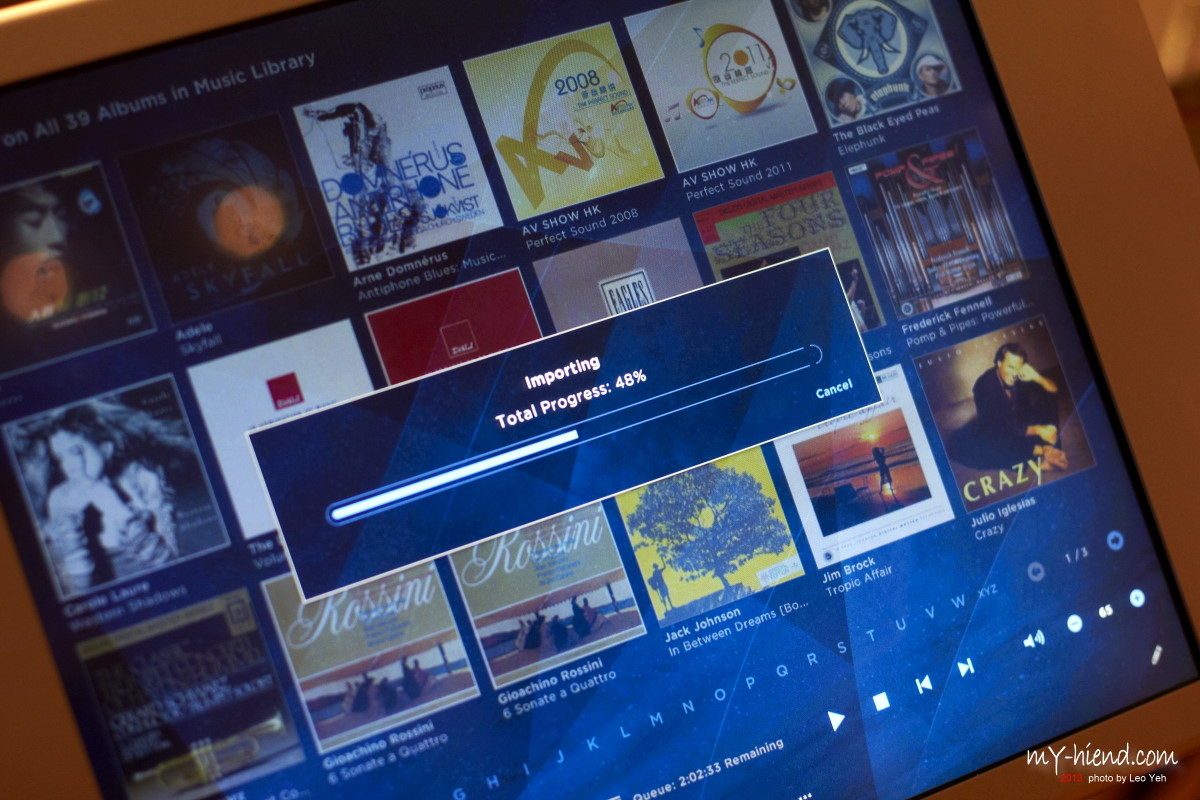

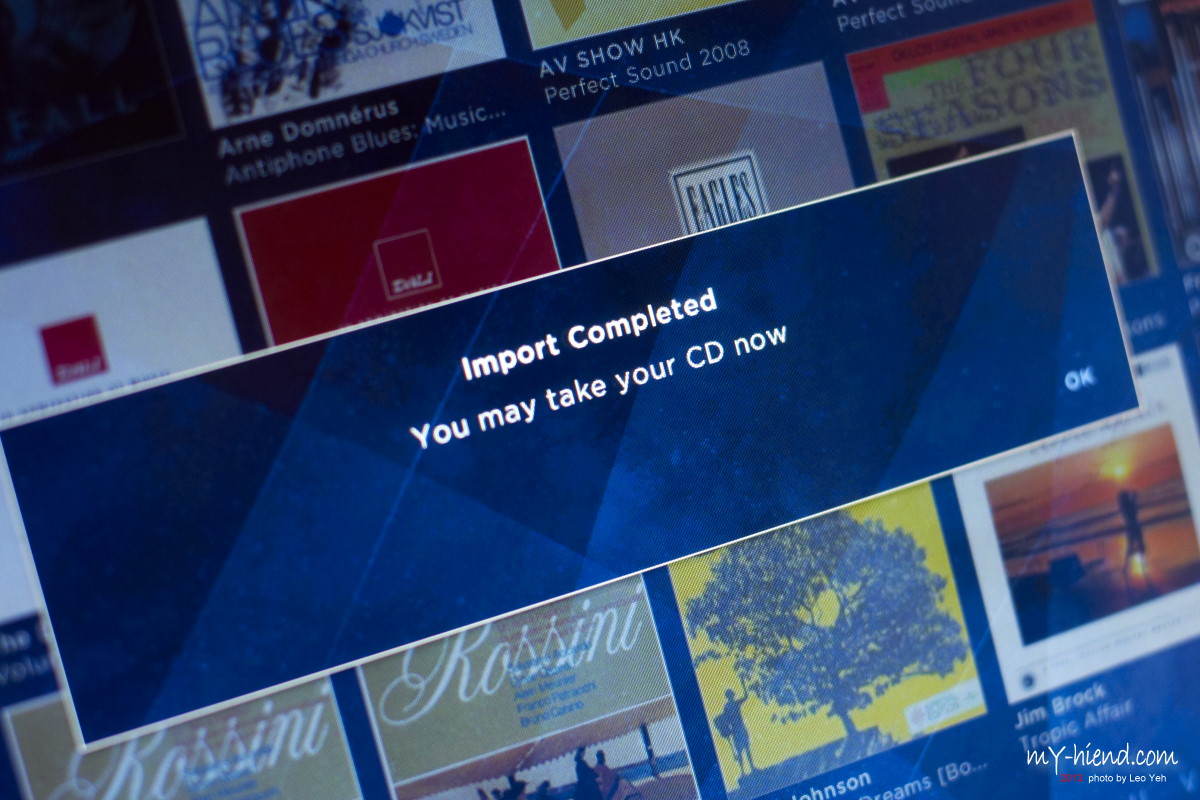

ripping,專輯資訊自動抓取

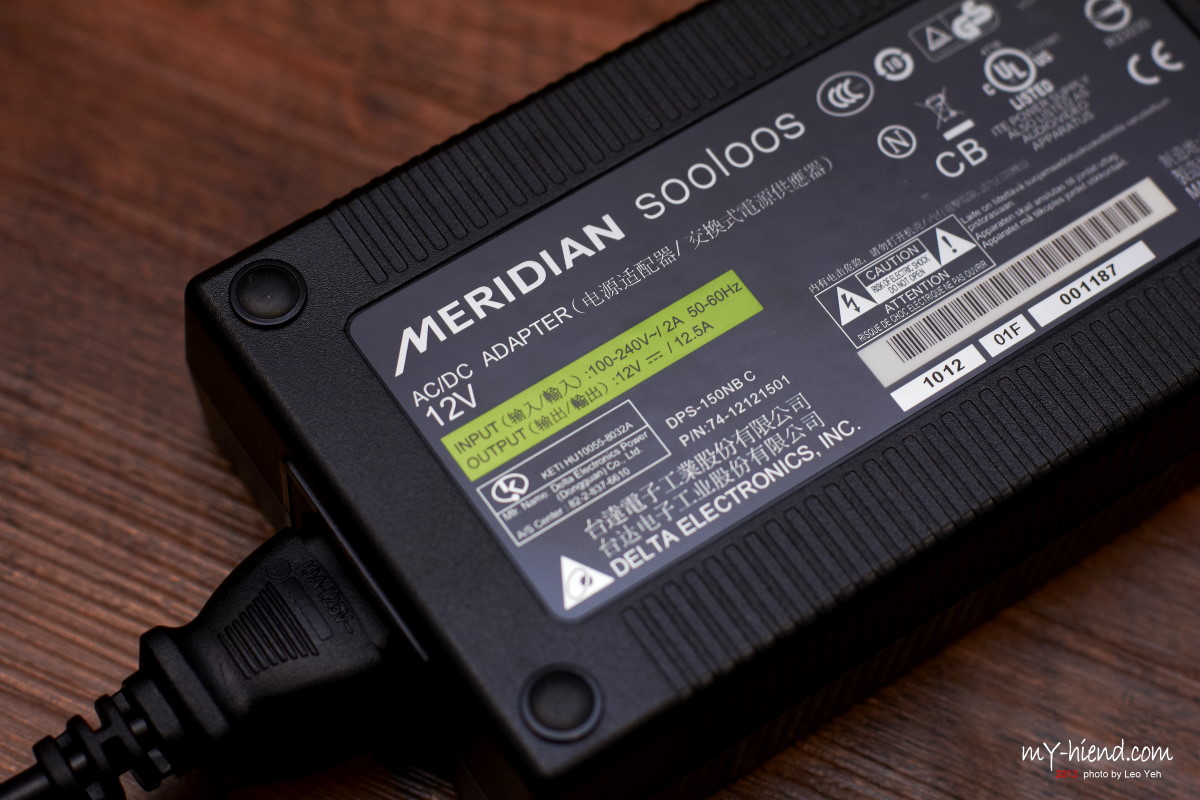

使用台達電的電源

Outline Specifications
Network Interface
• 1 Ethernet (RJ-45) or Neutrik EtherCon

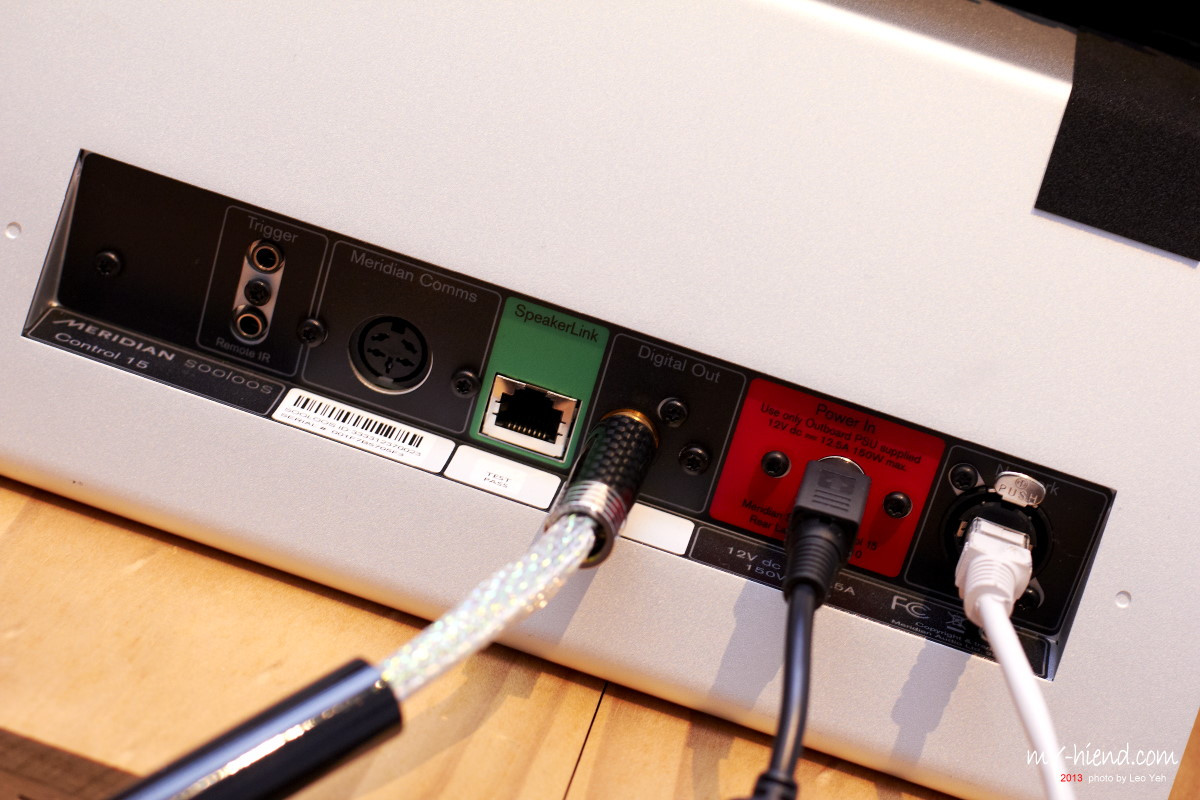

Audio Connections
• Meridian SpeakerLink (RJ45)
• 1 S/PDIF coaxial digital output, RCA type
Additional Control Connections
• Meridian Comms (DIN)
• IR input (3.5mm jack)
• Trigger out (3.5mm jack)
Audio Processing
• Ultra-stable clock for lowest possible jitter
• “Apodising” upsampling filter for ultimate digital performance
LCD Display
• Screen Size: 17 inch diagonal (43cm)
• Resolution: 1280 x 1024 pixels
• Brightness: 350 cdm2
• Viewing Angle: 150º
Touch Panel
• Type: Analogue resistive 5-wire
• Activation Force: < 50g
• Structure: Film/Glass
• Lifetime/Durability: 35 million touches
Dimensions
• 457 x 345 x185mm / 18 x 13.6 x 7.3in (WHD)
Tilt
• Adjusts from 0º (vertical) to 50º (tilted)
Weight
• 10.75kg (23.6lb)
Power
• 12V DC 12.5A, 150W (mini-DIN) via external AC adapter 110-230V (supplied) with removable IEC 3-prong power cable

全文報導 (MY-HIEND電子雜誌第5期)
