Rogue Audio Medusa
後級內部公開

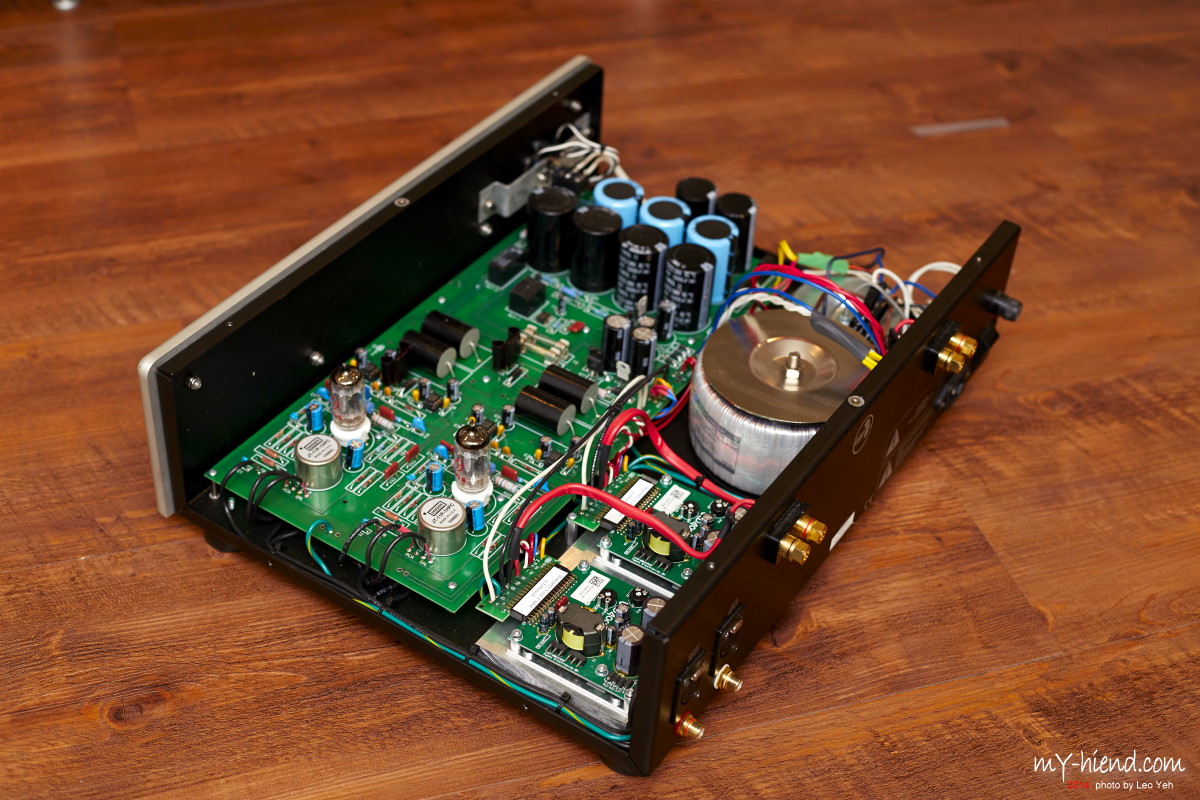

Medusa是D類晶體與真空管混合的後級，有著真空管豐富的音樂性及晶體的動態。Medusa的設計不是單純的直接在D類放大前加上真空管線路，使用的是Rogue Audio獨家的tubeD™線路架構，實際將兩者結合在一起。待機時晶體放大部份仍有提供電力，真空管則是較緩慢的啟用，以保護真空管。Medusa輸出功率為200W(8 Ohms), 400W (4 Ohms)。

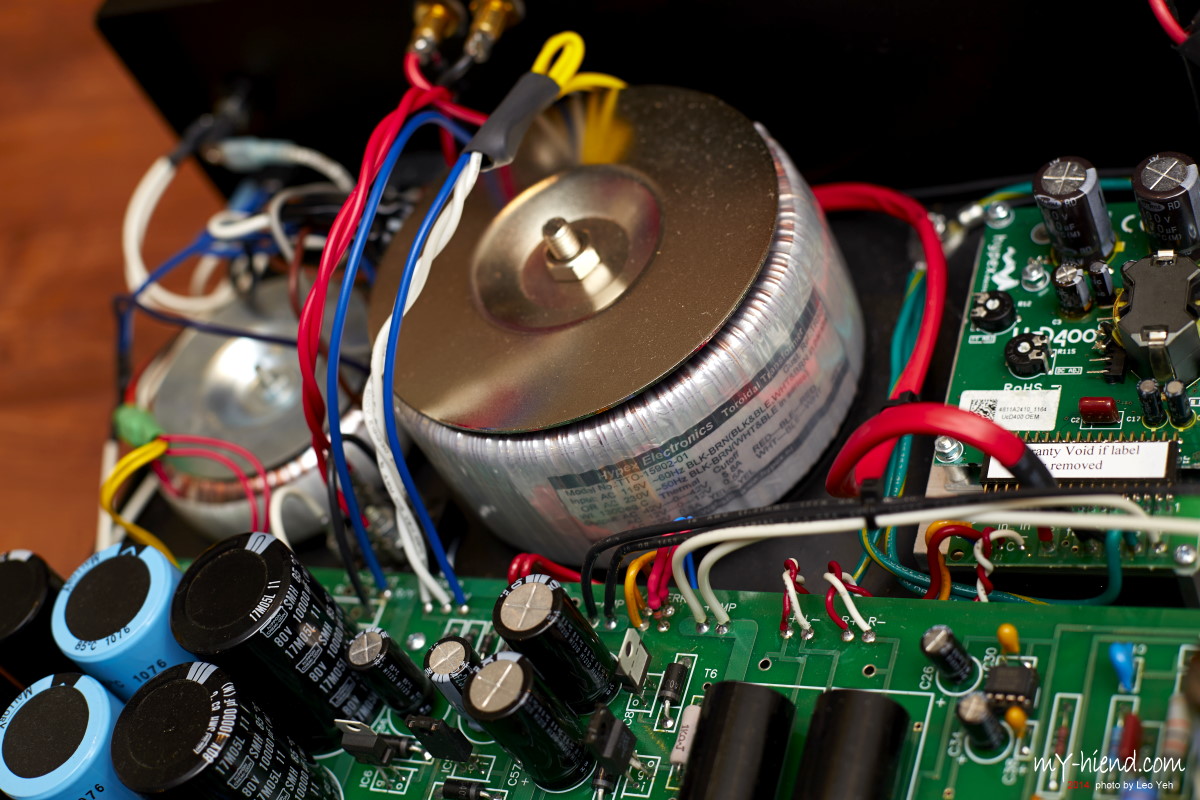

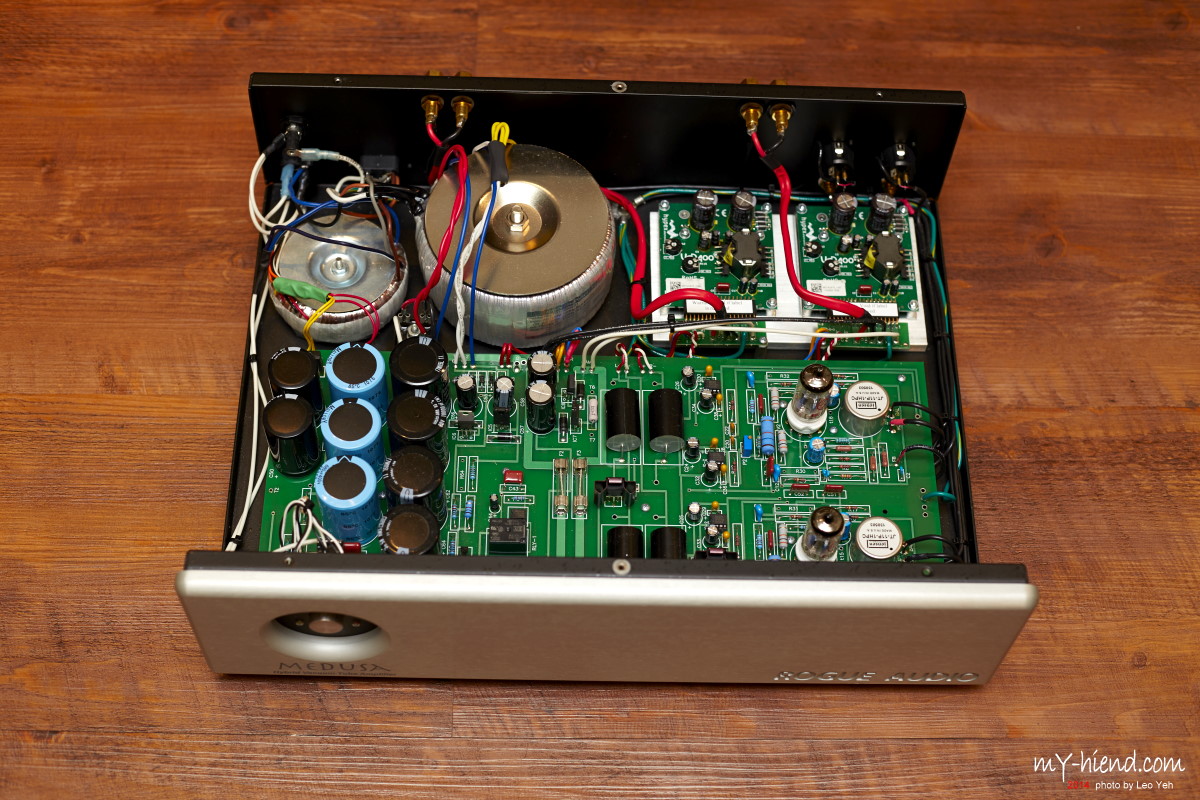

打開內部就可看到兩顆一大一小的環型變壓器

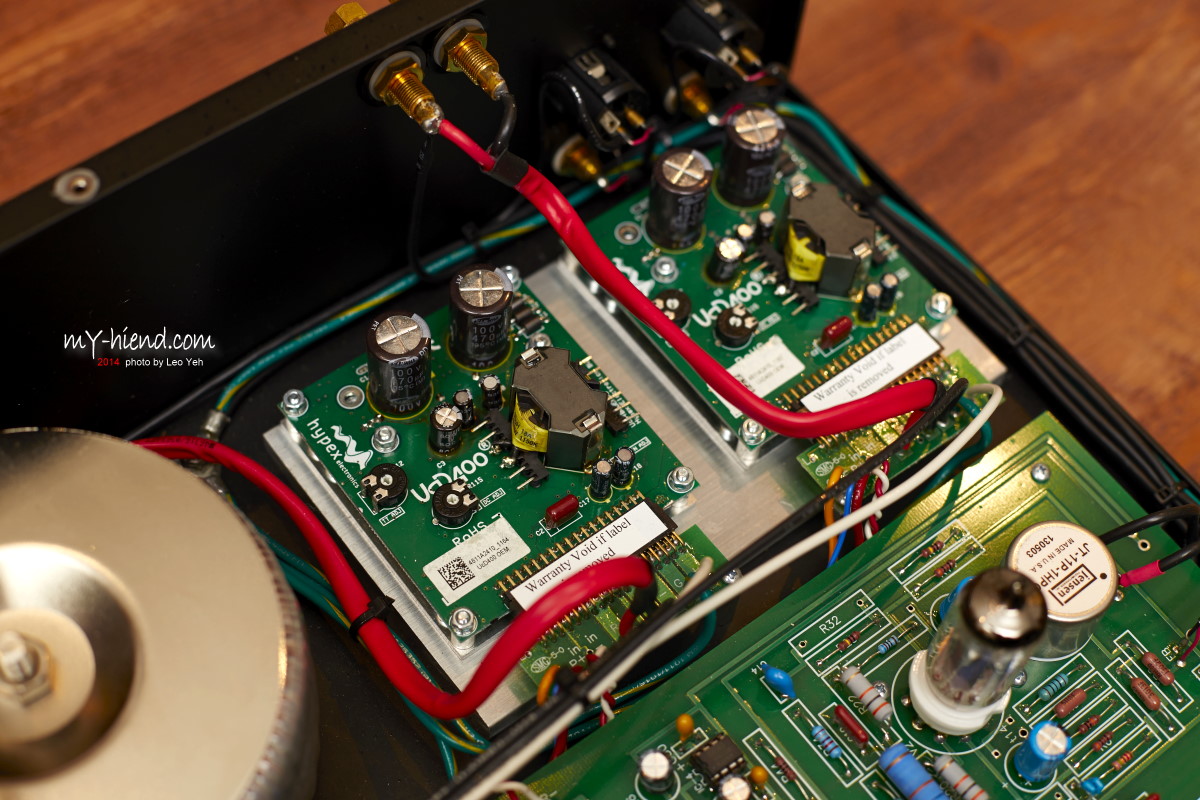

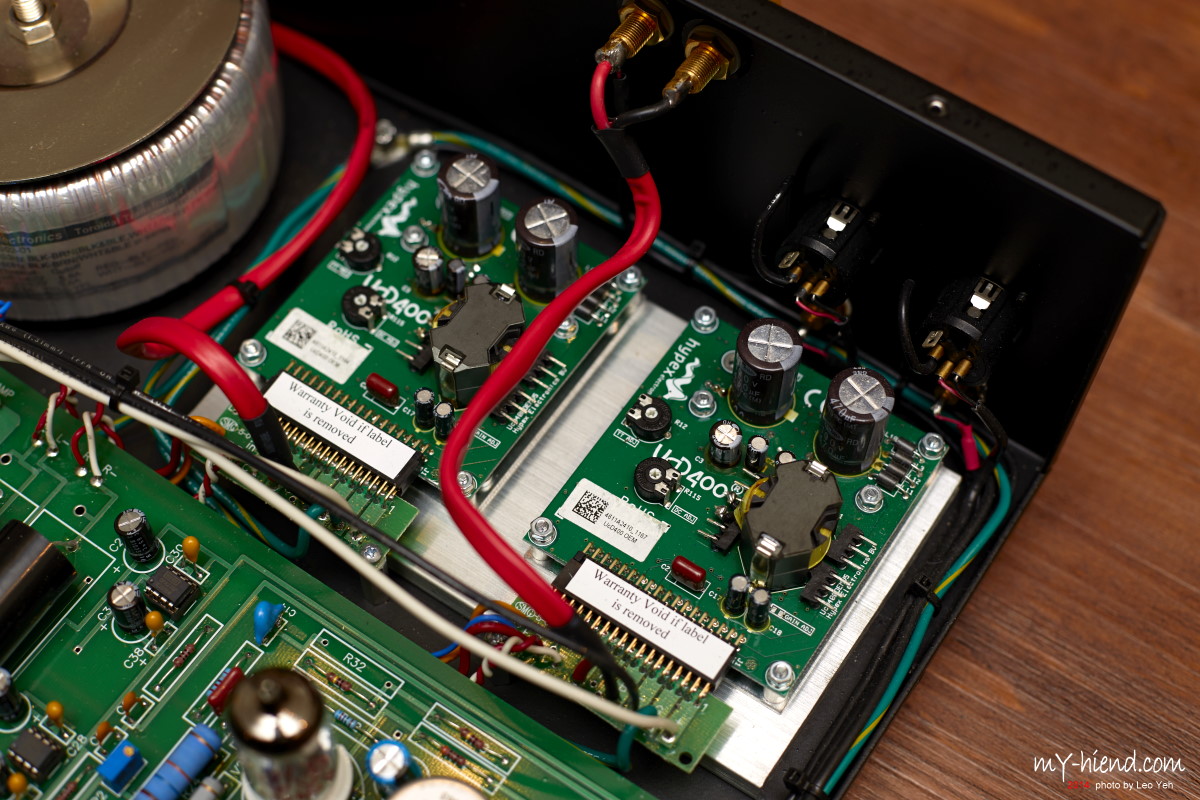

這兩片應該是客訂的荷蘭Hypex D類晶體放大的模組，左、右聲道各一組

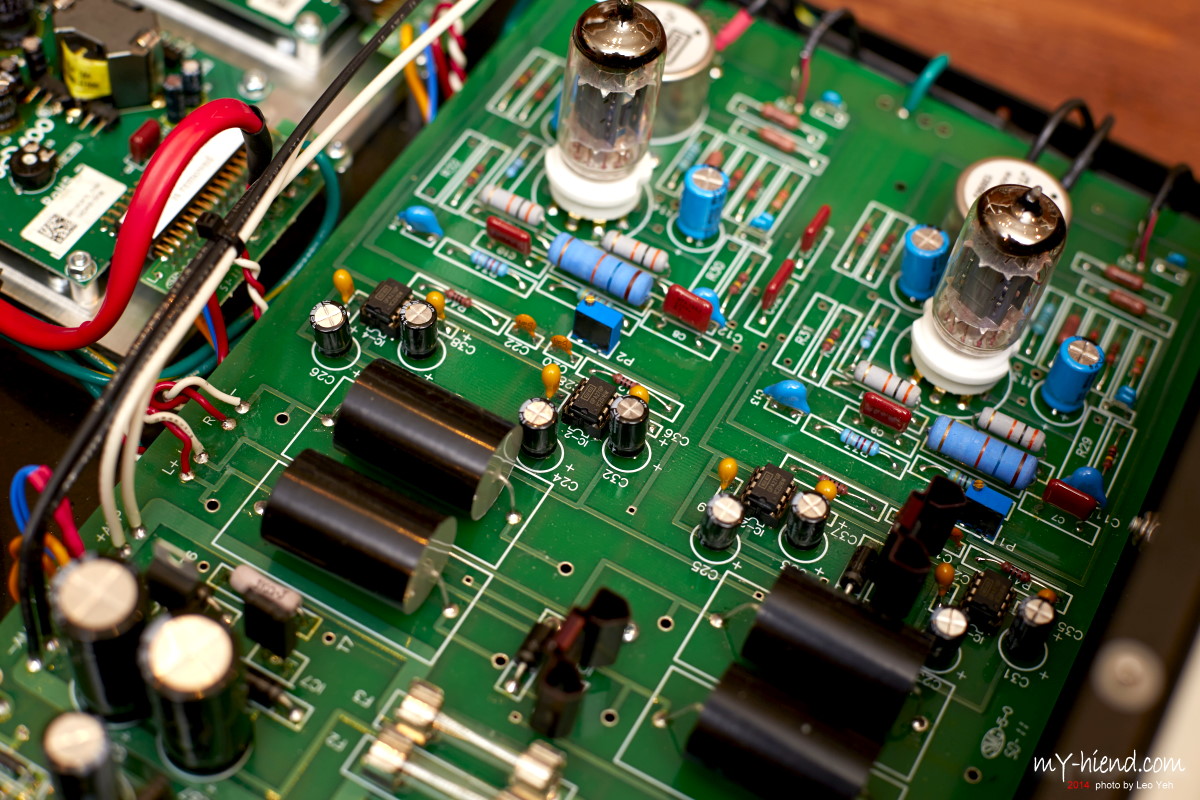

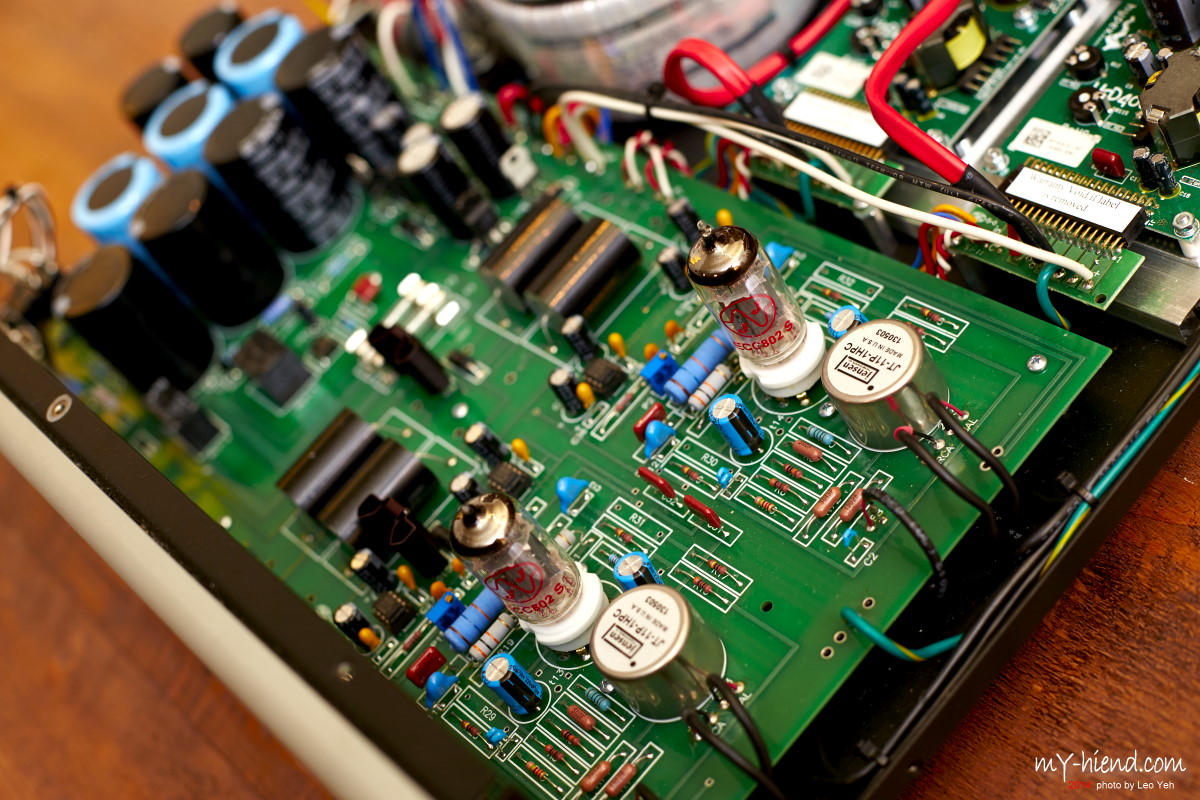

真空管放大部份，採用兩隻ECC802 S，與12AU7可替換

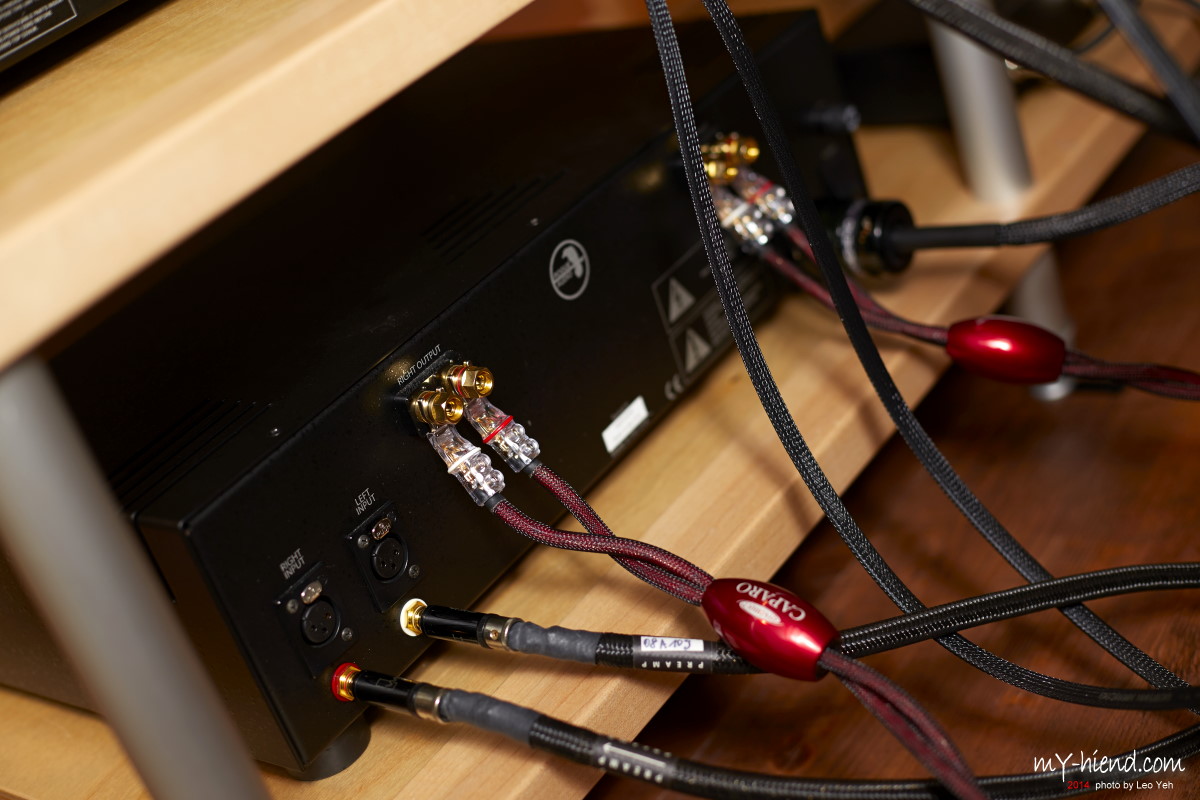

具有RCA與XLR輸入各一組
General Features:
– Large high performance torodal transformers

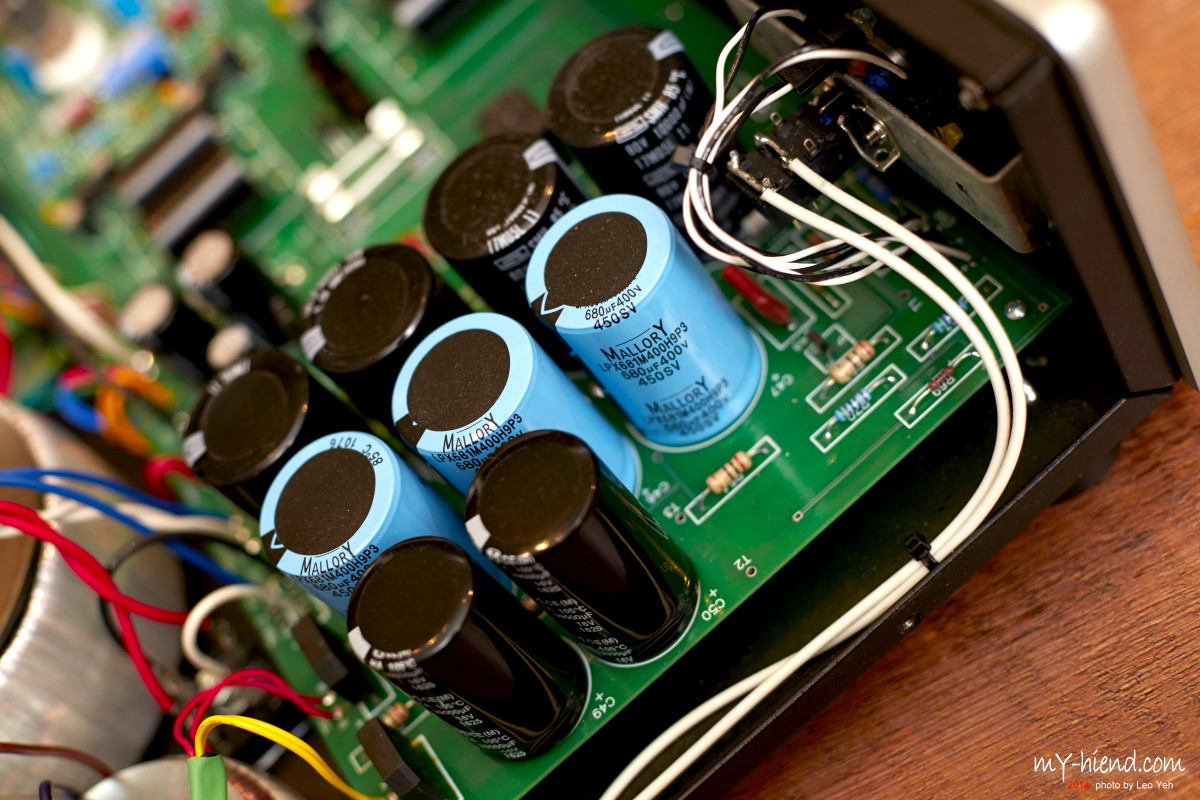

– Massive linear power supplies
– Balanced (XLR) and single ended (RCA) inputs
– Heavy-duty gold plated binding posts
– Two 12AU7 tube complement
– Short circuit protection
– Standby circuitry for solid state components
– Slow start circuit for extended tube life
– Machined aluminum faceplate
– Heavy (2 ounce) copper circuit board
– All precision components
– Fully tested, burned in, and auditioned
Specifications:
– Output power Medusa: 200/400 WPC 8/4 Ohms
– Input impedance: 200K Ohms
– frequency response: 10Hz – 20KHz ± 1dB
– THD: <0.1% typ., <1.0% at rated power
– input sensitivity: 1.0V RMS
– dimensions: 18″ W x 15″ D x 5.5″ H
– weight: Medusa 38 lbs
– power requirements: 115/230V – 50/60Hz
